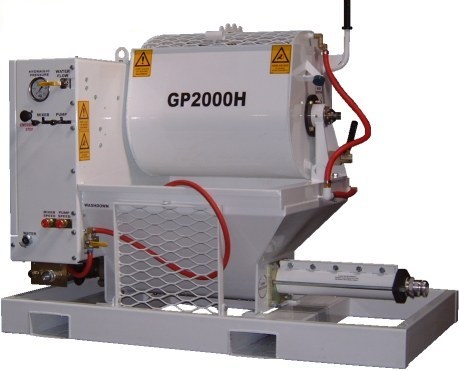

Grout Pump GP2000 Designed and Built for the Mining and Tunnelling Industries
Specifically designed to meet the exacting requirements of the mining and tunnelling industries, The GP2000 grout pump range of rotor/stator pumps provide the ideal solution for all of your cementitious grout mixing and grout pumping needs.
Suitable for use in most grouting applications, the gp2000 grout pump can be used for all types of cementitious grouts. From specially formulated high-flow grouts through to low water-cement ratio thrixotropic grouts. The GP2000 is also suitable for use in small volume wet shotcrete applications up to a maximum aggregate size of 4mm.
Designed with a focus on robust performance and easy operation the GP2000 grout pump delivers outstanding results in terms of both quality and productivity. It’s fully integrated compact design enables continuous grouting with a high degree of quality control while the units high-efficiency 100 litre capacity paddle mixer allows for simultaneous mixing and pumping.
- Robust and compact design
- Easily operated by one person
- Inbuilt water meter
- Low work height
- Easy clean up
- Low maintenance
- Easily manoeuvrable by crane or forklift
- Australian made
Suitable for use with:
- Low water-cement ratio grouts
- Thrixotropic grouts
- High flow grouts
- Sand/Cement grouts
- Wet shotcrete mix (to max 4mm aggregate size)
Drive systems available:
- GP2000A (Air powered grout pump)
- GP2000H (Hydraulic powered grout pump)
- GP2000E (Electric powered grout pump)
- GP2000D (Diesel over Hydraulic powered grout pump)
|Output:||2,000 litres per hour|
|Mixing Capacity:||100 litres|
|Hopper Capacity:||195 litres|
|Conveying Distances:||Vertical: 20-30m
|Maximum Pumping Pressure (grout)*: 25 bar
*at pump outlet-grout line pressures will be dependant on
the grout type, viscosity and grout line diameter and lengths.
