T85 Series Truck Mounted High Rise Concrete Line Pump

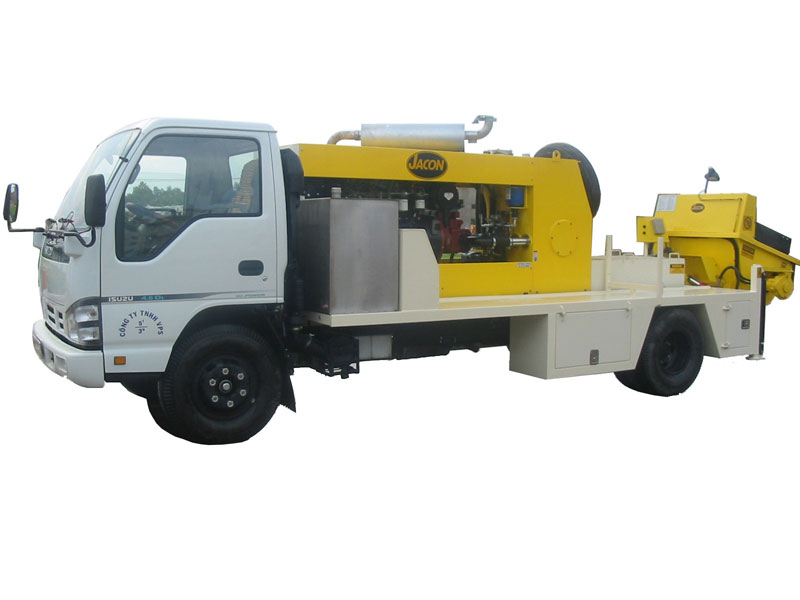

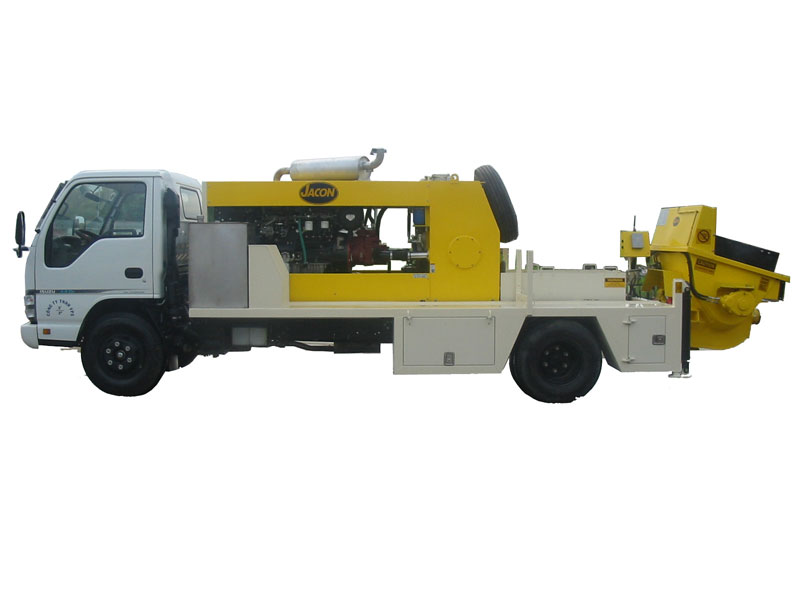

Jacon T85 Truck Mounted High Rise Concrete Line Pump .

The Jacon T85 series high rise concrete line pump is for those contractors who are serious about performance. The T85 is capable of 90 cubes per hour and if you need a high pressure unit capable of pushing 160 meters vertical in high pressure mode.The T85 high rise concrete line pump has lockable cabinets and ample room for  all your pipes,clamps and pumping consumables in the lockable side cabinets and can also be optioned with a compressor or pressure washer for cleaning out at the end of the job.

The JACON T85 concrete line pump draws on nearly 40 years of production of concrete pumps,line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of these Jacon concrete line pumps units.

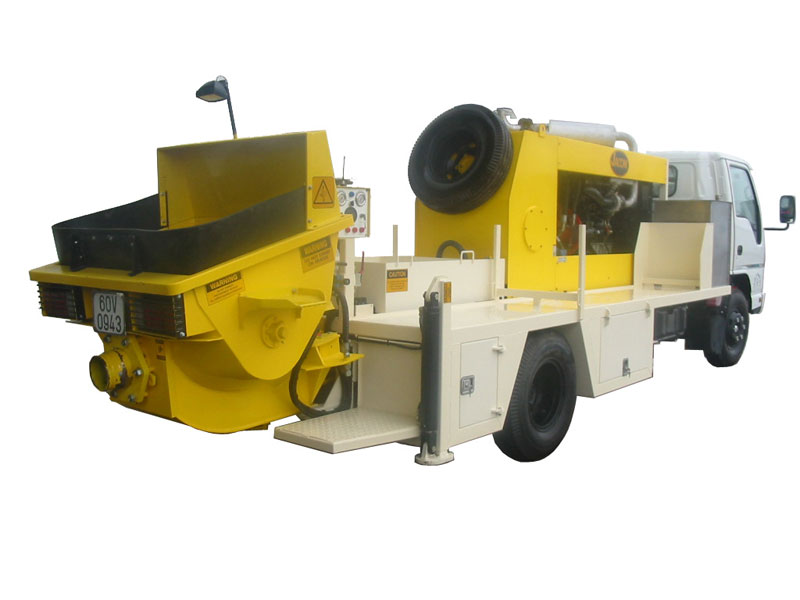

The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the T85 high rise concrete line pump a very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening with a paddle mixer. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components. With electric over hydraulic control system you will never hear a smoother pump in action.  The Rexroth hydraulic manifold blocks eliminate the need  any hoses and fittings, reducing oil leaks. Your return on investment is unmatched when comparing Jacon concrete line pumps with any model.

Standard Features

  • High performance diesel engine
  • “S” valve with automatic adjustment cutting ring
  • Dual circuit hydraulics and accumulator
  • Fully electric over hydraulic system, simple, reliable and maintenance free
  • Hardchromed concrete cylinders
  • Splash guard
  • Hopper grate with safety interlock
  • Instant reverse on pumping cylinders
  • Fully automatic stroke adjustment
  • Single channel cordless remote control for pump ON/OFF
  • Variable displacement Piston Pump

General Specifications

Type: Swing tube model with dual reciprocating pistons
Engine: 6 cylinder turbo charged PERKINS diesel engine
Power : 134kw @ 2000 RPM
Hydraulic Pressure Max 350 Bar
Hydraulic Oil Capacity 600 Litres

Performance Capabilities

T75 Truck Mounted Unit

Rated Output: 65 (m3/hr)
Vertical Pumping Distance: 205 meters
Horizontal Pumping Distance : 650 meters
Line Pressure Max : 150 Bar
Maximum aggregate size (mm): 60

T85 Truck Mounted Unit

Rated Output: 90 (m3/hr)
Vertical Pumping Distance: 160 meters
Horizontal Pumping Distance : 520 meters
Line Pressure Max : 110 Bar
Maximum aggregate size (mm): 60
