Sidewinder Truck Mounted Concrete Line Pump

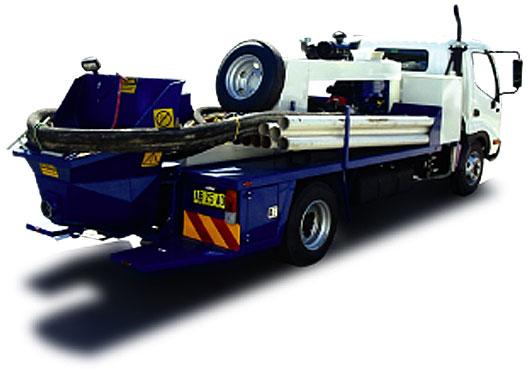

Jacon  Sidewinder Series Truck Mounted Concrete Line Pump.

 The Sidewinder series is ideal for those jobs were only a line pump will do. The Sidewinder line pump has sufficient room to store all your pipes,clamps and pumping consumables in the side cabinets and can also be optioned with a compressor for cleaning out at the end of the job.  Pumps available in 30 cubes per hour to 50 cubes per hour.

The JACON Sidewinder concrete line pump draws on nearly 40 years of production of concrete pumps,line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of these Jacon concrete line pumps.



The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the Sidewinder concrete pump ia very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components. The Rexroth hydraulic manifold blocks eliminate the need  any hoses and fittings, reducing oil leaks. Your return on investment is unmatched when comparing Jacon concrete pumps with any model.

Standard Features

  • High performance diesel engine
  • “S” valve with automatic adjustment cutting ring
  • Dual circuit hydraulics and accumulator
  • Fully hydraulic pilot system, simple, reliable and maintenance free
  • Hardchromed concrete cylinders
  • Splash guard
  • Hopper grate with safety interlock
  • Instant reverse on pumping cylinders
  • Fully automatic stroke adjustment
  • Single channel cordless remote control for pump ON/OFF
  • Variable displacement Piston Pump

General Specifications:
Type: Swing tube model with dual reciprocating pistons
Engine: 4 cylinder turbo charged Duetz Diesel Engine.
Power: 5.5 KW @ 2800 rpm.
Hydraulic Pressure Max: 250 Bar.
Hydraulic Oil Capacity: 200 Litres

Recommended Truck Specifications:
Type: 4×2 Cab Chassis
G.V.M: 7000 kg
Wheelbase: 3.3 m.
Chassis width: 820 mm
Examples: Hino Dutro 6500, Isuzu NPQ 300

Download PDF

Performance Capabilities:

MODEL

Sidewinder

6000

Sidewinder

7000

Sidewinder

6000LS

Sidewinder

7000LS

Rated Output (m3/hr)

30

45

35

30

Pumping Cylinders Stroke (mm)

152 x 915

175 x 915

152 x 1145

175 x 1145

No of Stroke (per minute)

35

35

30

30

Vertical Reach (m)

90

60

90

60

Horizontal Reach (m)

300

200

300

200

Line Pressure (Bar)

70

50

70

50

Max Aggregate Sizes (mm)

40

40

40

40

Note: Performance may vary due to concrete mix design, job site conditions and line set up.

Features:
Variable displacement piston pump

Fully automatic stroke adjustment. No valves to set or adjust.
Dual hydraulic circuit for positive swinger tube displacement.

Fully hydraulic pilot system for maximum reliability.
Single channel cordless remote control for pump ON/OFF.

Optional:
4 Channel Remote Control.
Hydraulic Jack Legs.
Pipeline Equipment.
