S87HP Trailer Concrete Pump

S87HP Concrete Trailer Pump

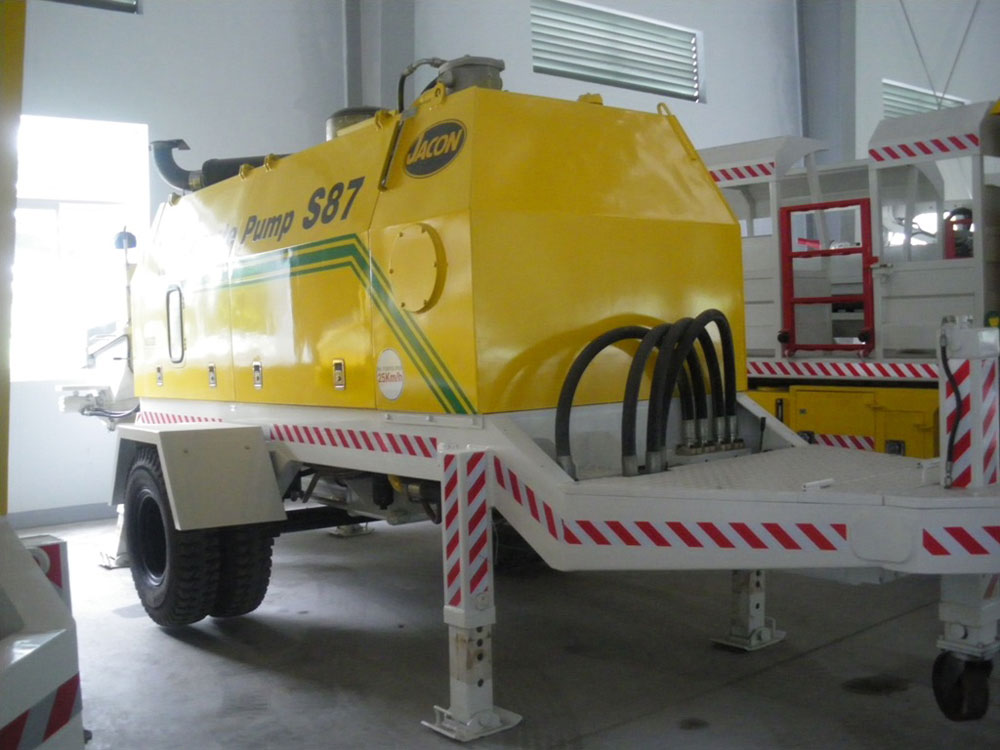

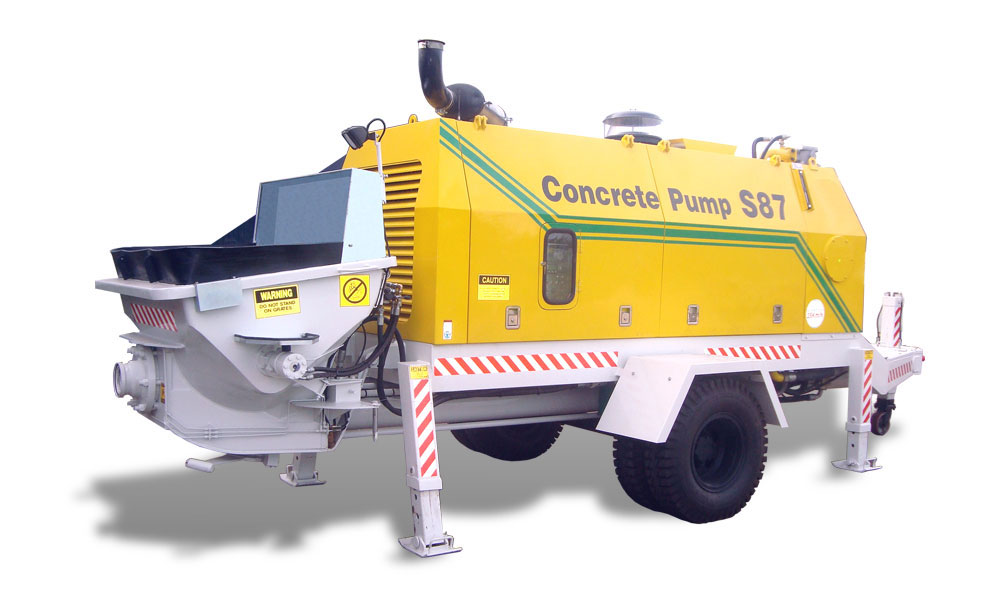

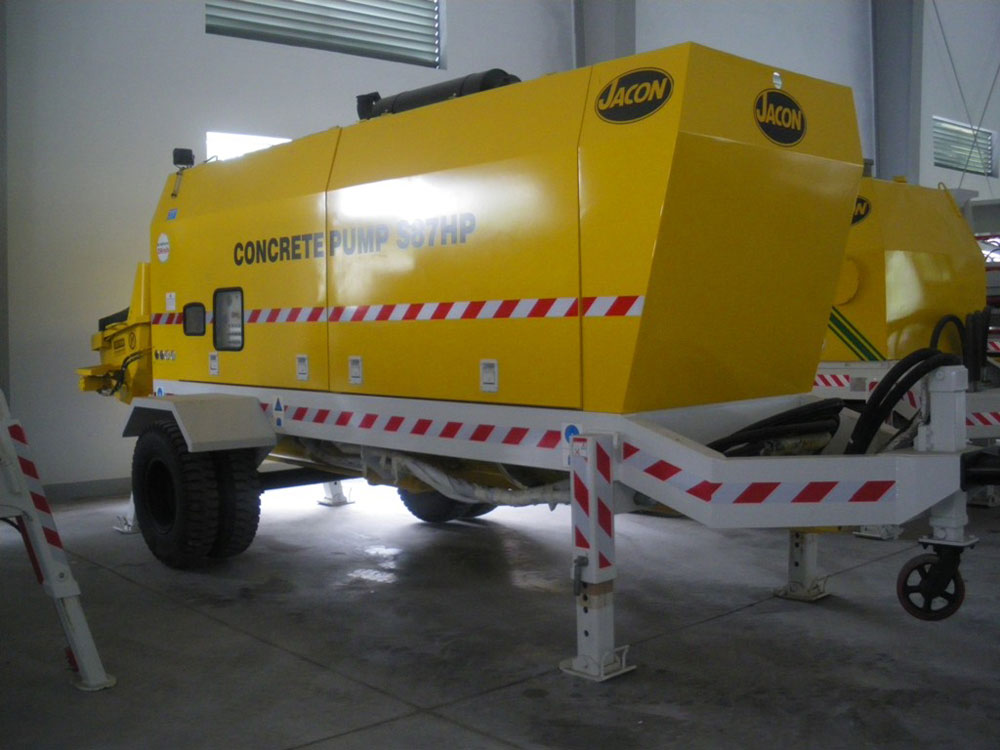

Jacon  S87HP  Trailer  Concrete Pump.

The Jacon S87 HP series high rise trailer concrete pump is for those contractors who are serious about performance. The S87 HP  trailer concrete pump is capable of 100 cubes per hour and if you need a high pressure unit capable of pushing 294 meters vertical in high pressure mode. The S87 HP high rise trailer concrete pump can also be optioned with a compressor and pressure washer for cleaning out at the end of the job and also can  run an auxiliary circuit for high rise valves.

The JACON S87 HP trailer concrete pump draws on nearly 40 years of production of concrete pumps,trailer concrete pumps, line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of these Jacon concrete trailer pumps units.

The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the T87 HP high rise trailer concrete pump a very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening with a paddle mixer. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components. With electric over hydraulic control system you will never hear a smoother pump in action.  The Rexroth hydraulic manifold blocks eliminate the need  any hoses and fittings, reducing oil leaks. Your return on investment is unmatched when comparing Jacon concrete trailer pump with any model.

Water Pump
High Pressure multi-stage centrifugal water pump driven by hydraulic motor for washing out the remaining concrete inside the concrete cylinder, hopper or pipeline by generating powerful water pressure.

Automatic Grease Feeder
The Automatic Grease Feeder controls the optimum quantity of grease by automatic control system installation.



S87 HP TRAILER CONCRETE PUMP:



Type                                                :           Swing tube model with dual reciprocating pistons

Power unit                                     :           Caterpillar diesel engine 207 kW@2200rpm

Hydraulic pressure max            :           350 Bar

Rated output Rod                        :           100 3/hr @105 bar

Rated output Piston                    :           68 3/hr @134 bar

Concrete cylinders                      :           200mm hard-chromed concrete cylinders with 1450mm stroke.

Vertical reach Rod                       :           170m

Vertical reach Piston                   :           294m

Horizontal Transfer Rod             :           320m

Horizontal Transfer Piston         :           634m

Max. Con. line pressure               :           110Bar

Hopper Capacity                            :           650 ltr

Aggregate size                                :           60mm that falls within the accepted grading curve for pump mix.

Download PDF
