S30 Trailer Pump

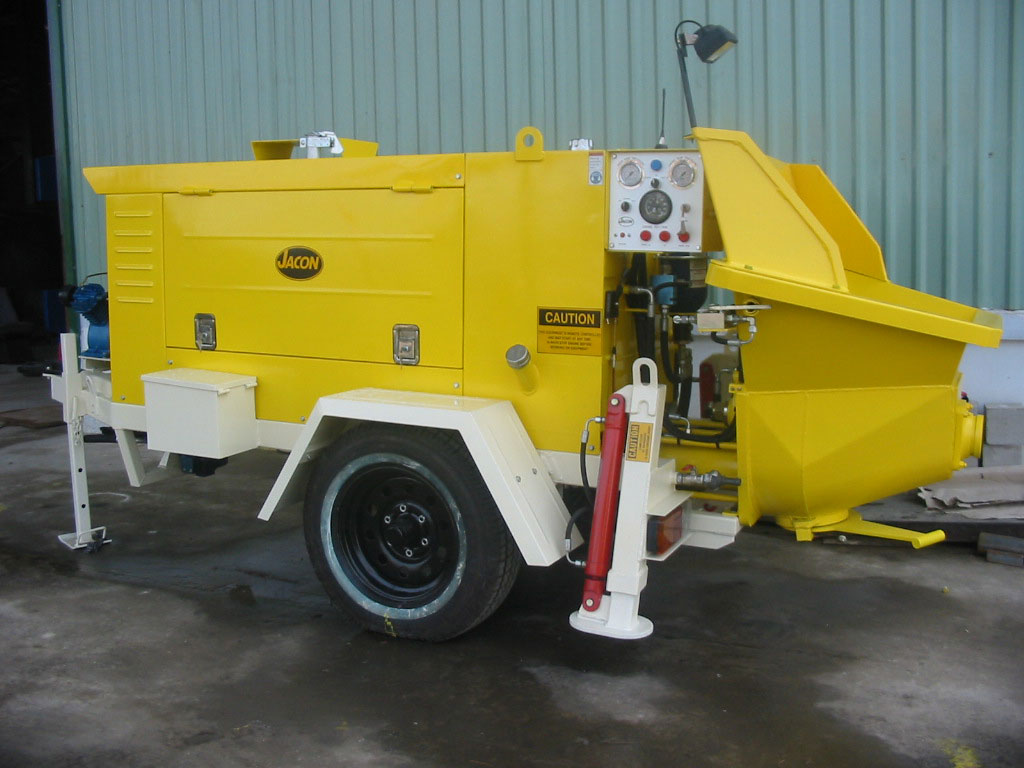

 Jacon S30 Concrete Trailer Pump

The S30 Concrete/Grout trailer pump is the smallest of the Jacon series and is capable of an aggregate mix of upto 20mm stones. The S30 but with is self sealing pressure cutting ring make this unit the perfect choice grout mixes  for subsea work. The S30 Trailer pump has lockable side cabinets and can also be optioned with a compressor for cleaning out at the end of the job.  Pumps are available in 20 cubes per hour to 45 cubes per hour with a 4″ discharge.

The JACON S30  concrete/grout trailer pump draws on nearly 40 years of production of concrete pumps,line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of these Jacon concrete pumps.



The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the Sidewinder concrete pump ia very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components. The Rexroth hydraulic manifold blocks eliminate the need  any hoses and fittings, reducing oil leaks. Your return on investment is unmatched when comparing Jacon concrete pumps with any model.

FEATURES

Fully automatic stroke adjustment. No valves to set or adjust. Dual circuit hydraulic for positive swinger tube displacement
Electric over hydraulic pilot system for maximum reliability. Single channel cordless remote control for pump ON/OFF

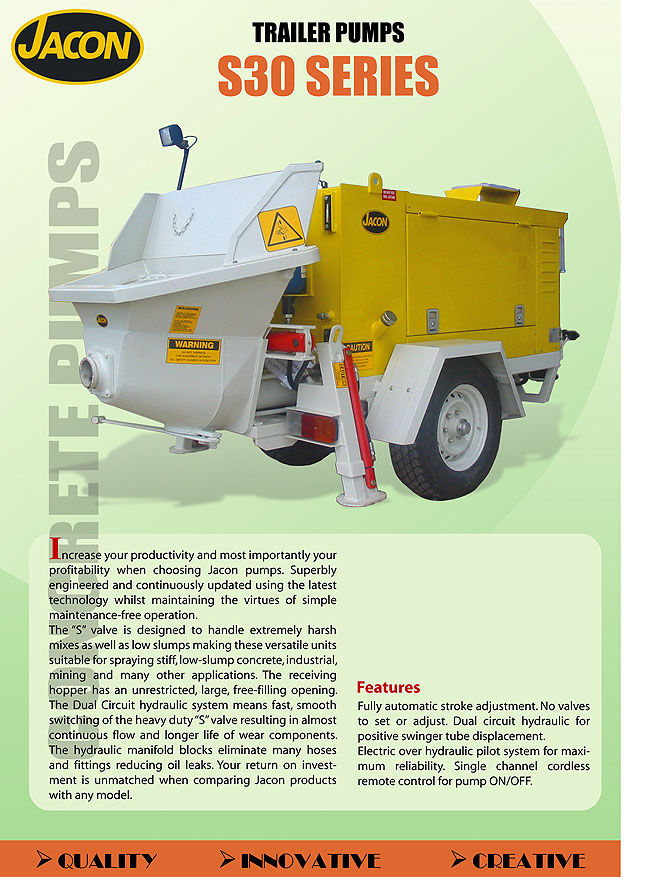

Download PDF
