Concrete Pump Hire S85

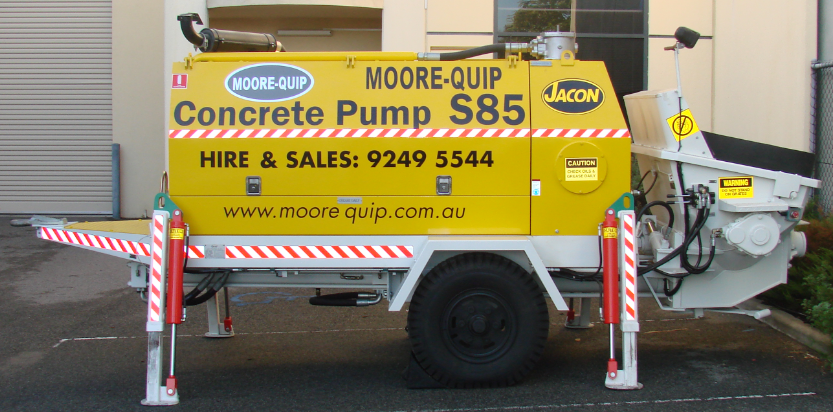

Concrete Pump Hire  S85 side view

Concrete Pump Hire S85

Concrete Pump Hire S85

The Jacon 85 series  concrete pump hire trailer with its high pressure output and 90 cubes per hour pumping rate make this one of the most versatile trailer pumps on the market. The S85 has selectable low pressure (75 Bar)making it excellent for piling support.The S85 unit also has a high pressure  and  capable of pushing 160 meters vertical (110bar), ideal for high rise projects. The S85 also has hydraulic stabilisers with locking pins. The S85  trailer pump comes with lockable engine cabinet doors and pressure washer for cleaning out at the end of the job.

The S85 is shipped with 6″ to 5″ 90 degree reducing bend and wash out equipment, hoses and clamps are available on request.

The JACON S85 hire concrete pump draws on nearly 40 years of production of concrete pumps,line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of these Jacon hire concrete pump units.

Concrete Pump Hire, Call Moore-Quip for quotes: 08 9249 5544

Download PDF

Standard Features

  • High performance diesel engine
  • “S” valve with automatic adjustment cutting ring
  • Twin shifting ball and socket cushioned cylinders
  • Dual circuit hydraulics and accumulator
  • Hopper re-mixer
  • Electric over hydraulic pilot system with manual over-ride feature
  • Hard chromed concrete cylinders
  • Splash guard
  • Hopper grate with safety interlock
  • Instant reverse on pumping cylinders
  • Heavy Duty axle with suspension
  • Fully automatic stroke adjustment
  • lifting/tie down lugs
  • Fully hydraulic control for stabilisation
  • Hopper work light
Hire Concrete Pump S85 Front Jacks down

Hire Concrete Pump S85 Front
