Concrete Pump Hire S63

Hire concrete pump  Trailer mounted S63

Hire Concrete Pump S63

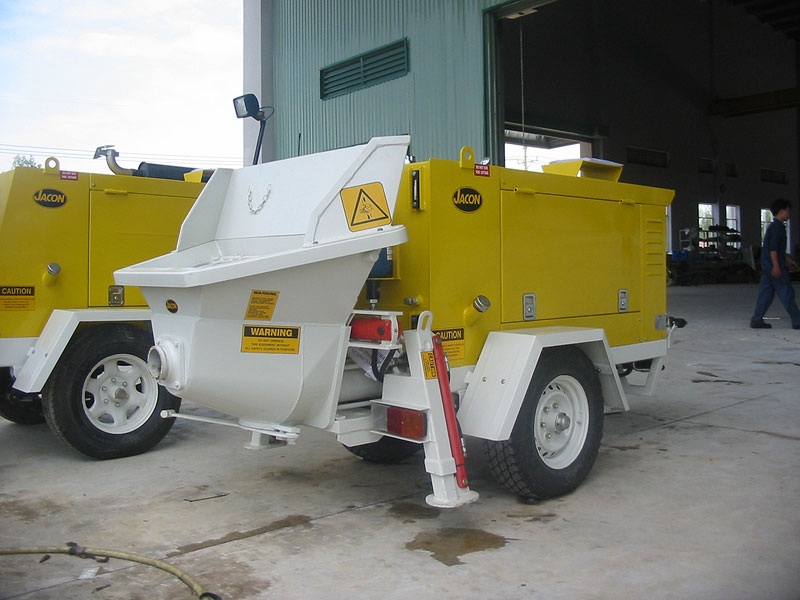

Concrete Pump Hire S63 Trailer Mounted

Concrete Pump Hire Jacon 63 pump is ideal for the contractor jobs were only a small powerful concrete pump will do. The S63 trailer is ideal for piling support, shotcreteing and general slab work. The S63 trailer pump has lockable side engine covers and hydraulic stabilisers. Our Hire concrete pump is fitted an adjustable chemical dosing pump for shotcreting.  The hire unit is 30 cubes per hour and up-to 40mm aggregate.

The JACON S63 concrete hire pump draws on nearly 40 years of production of concrete pumps,line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of these Jacon concrete hire pumps units.

The S63 is shipped with 5″ to 4″ 90 degree reducing bend and wash out equipment, hoses and clamps are available on request.

The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the S63 concrete trailer pump is a very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components. The Rexroth hydraulic manifold blocks eliminate the need  any hoses and fittings, reducing oil leaks. Your return on investment is unmatched when comparing Jacon concrete pumps with any trailer pump model.


Concrete Pump Hire, Call Moore-Quip for quotes: 08 9249 5544

Download PDF

Standard Features

  • High performance Deutz diesel engine
  • “S” valve with automatic adjustment cutting ring
  • Dual circuit hydraulics and accumulator
  • Fully hydraulic pilot system, simple, reliable and maintenance free
  • Hardchromed concrete cylinders
  • Splash guard
  • Hopper grate with safety interlock
  • Instant reverse on pumping cylinders
  • Heavy Duty axle with suspension
  • Fully automatic stroke adjustment
  • Single channel cordless remote control for pump ON/OFF
  • Lifting hook
  • Variable displacement Piston Pump
