Concrete Pump Hire S20

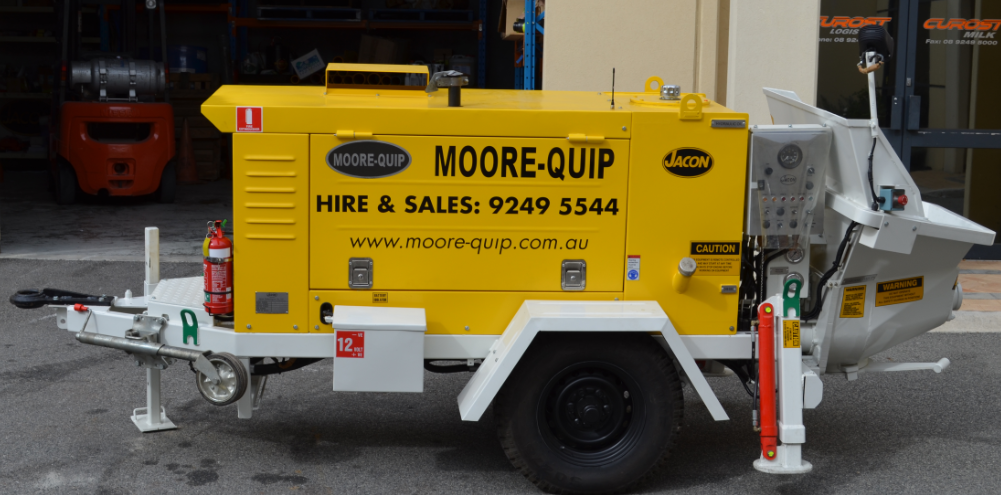

Hire Concrete Pump S20 side view

Hire Concrete Pump S20

 Concrete Pump Hire  S20

Concrete Pump Hire Jacon S20 unit is also suitable for pumping Grout this is the smallest of the Jacon pumps. The S20 and is capable of an aggregate mix of upto 20mm stones. The S20 but with is self sealing pressure cutting ring make this unit the perfect choice grout mixes  for subsea work. The S20 Trailer pump has lockable side cabinets and fitted with rear hydraulic stabilizers  The Hire Concrete pump can pump up to  in 20 cubes per hour and is fitted with a  4″ discharge.

The JACON S20  concrete/grout trailer pump draws on nearly 40 years of production of concrete pumps,line pumps and Shotcreting equipment.  You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate of the Jacon hire concrete pump.

The S20 is shipped with 4″ 90 degree reducing bend and wash out equipment, hoses and clamps are available on request.

The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the Sidewinder concrete pump ia very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components. The Rexroth hydraulic manifold blocks eliminate the need  any hoses and fittings, reducing oil leaks. Your return on investment is unmatched when comparing Jacon concrete pumps with any model.


Fully automatic stroke adjustment. No valves to set or adjust. Dual circuit hydraulic for positive swinger tube displacement
Electric over hydraulic pilot system for maximum reliability. Single channel cordless remote control for pump ON/OFF

Concrete Pump Hire, Call Moore-Quip for quotes: 08 9249 5544

Download PDF
