Jacon Transmix 5000 Cigar, Spare Parts and Accessories

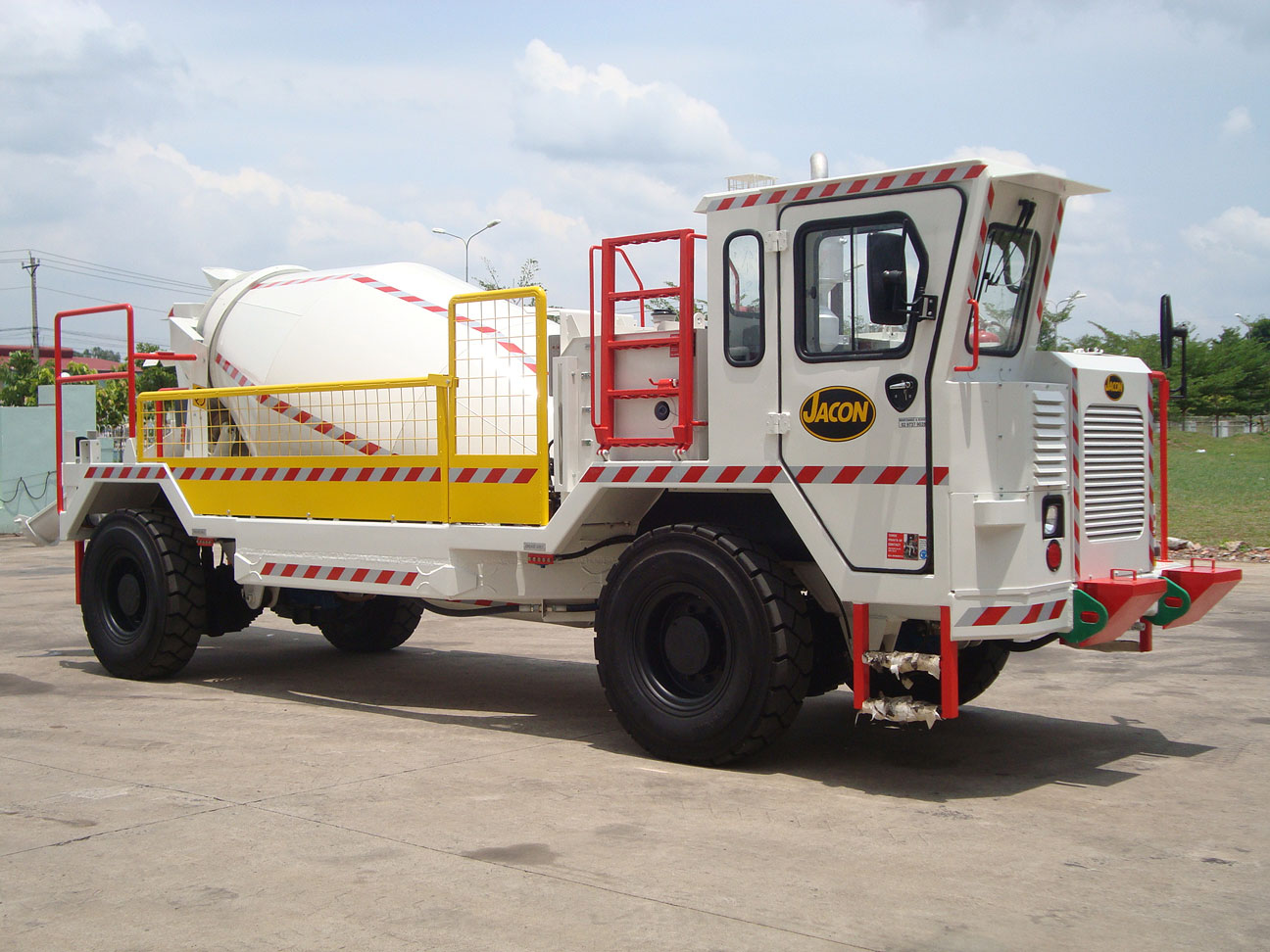

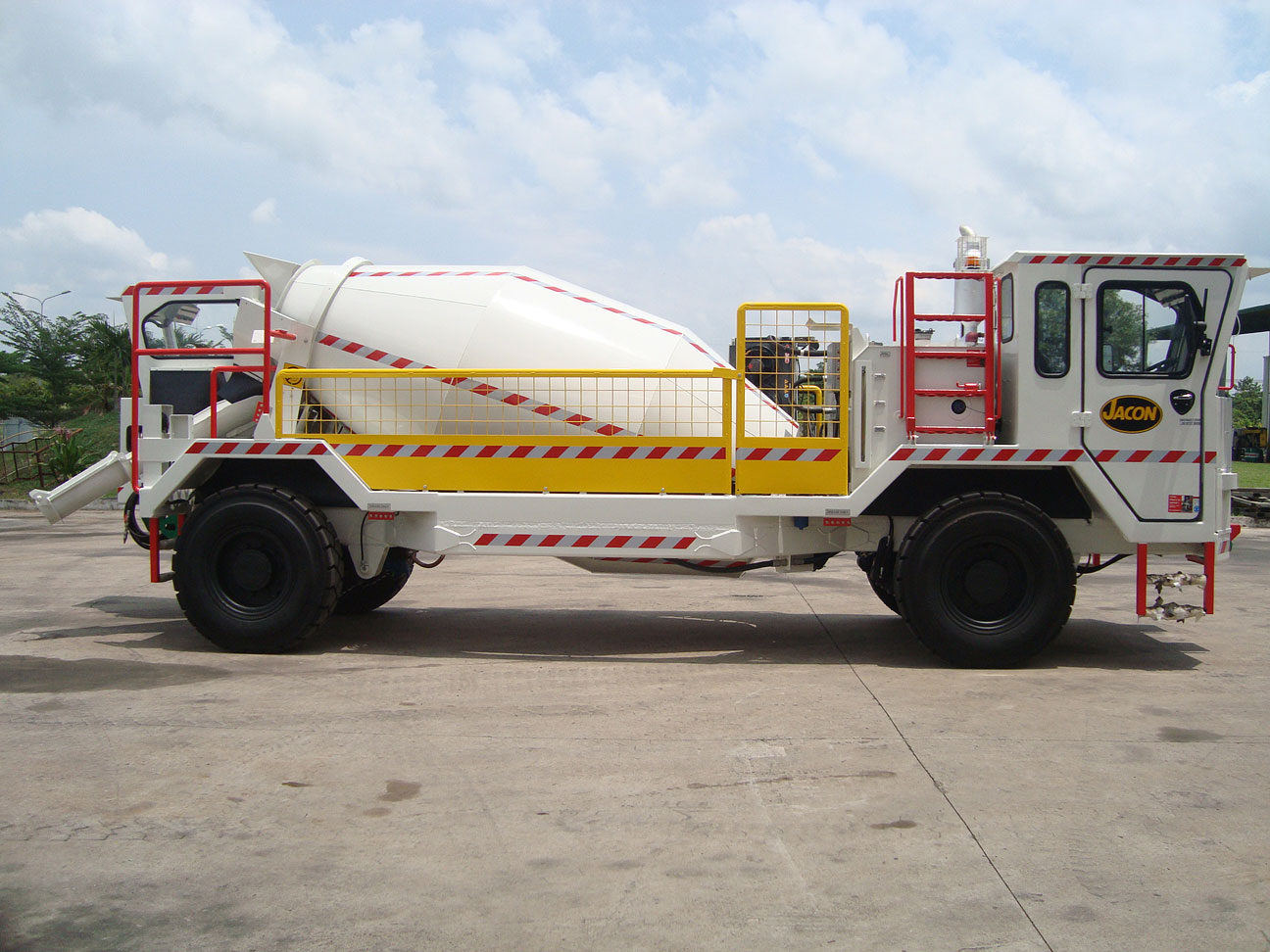

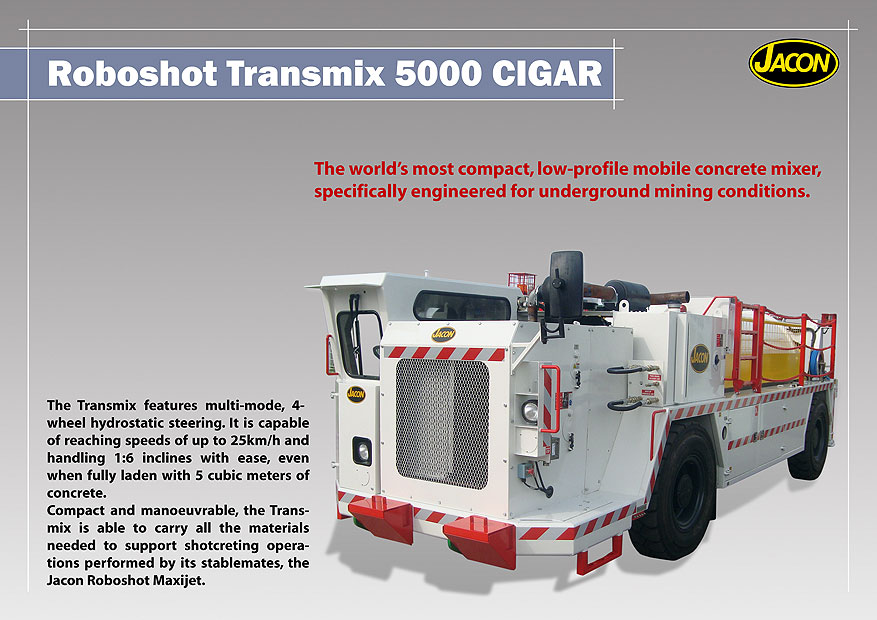

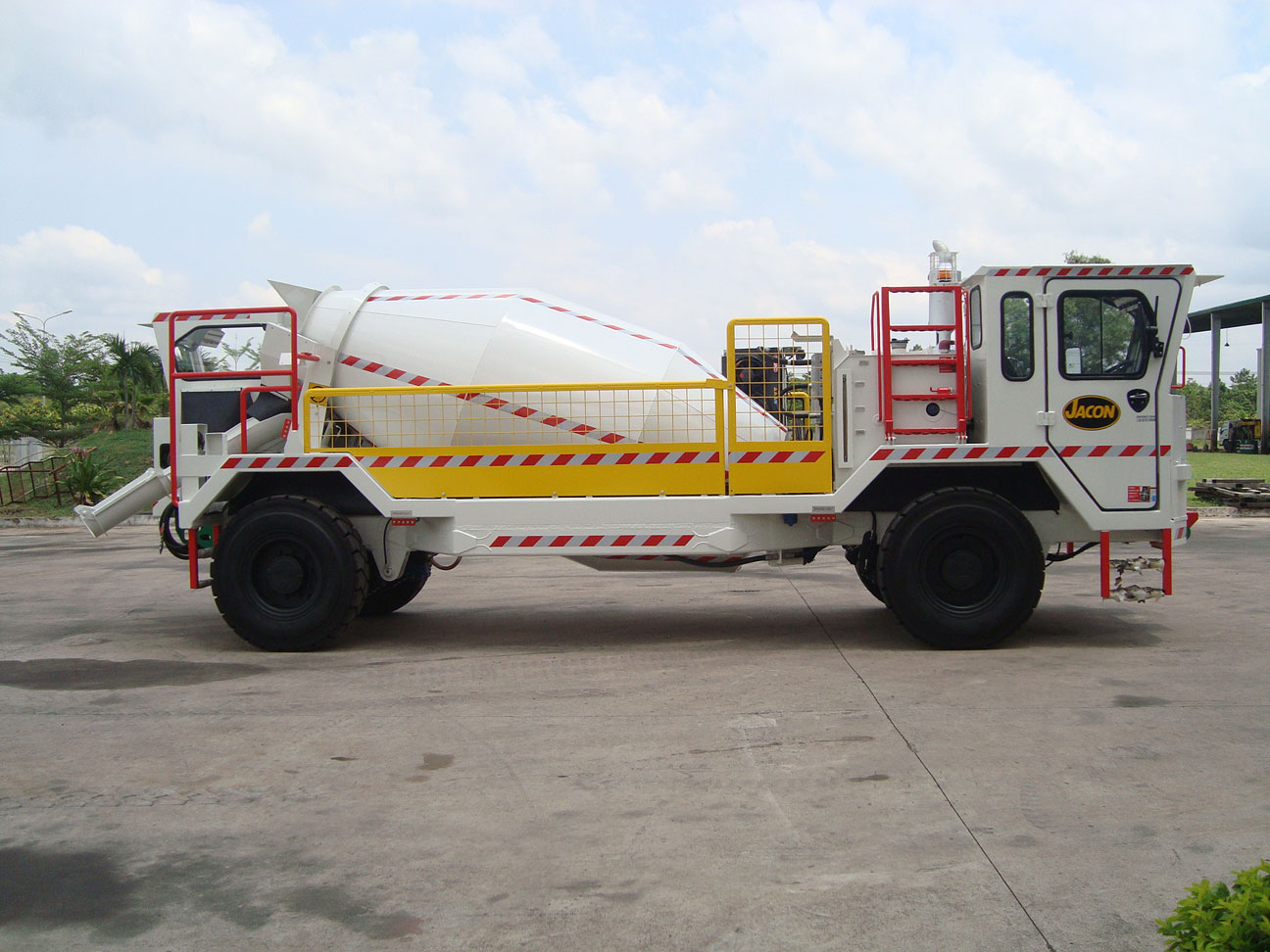

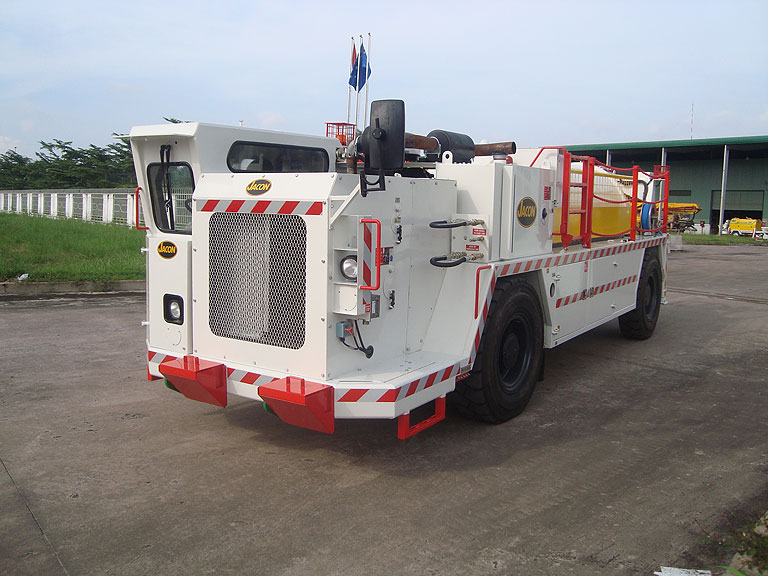

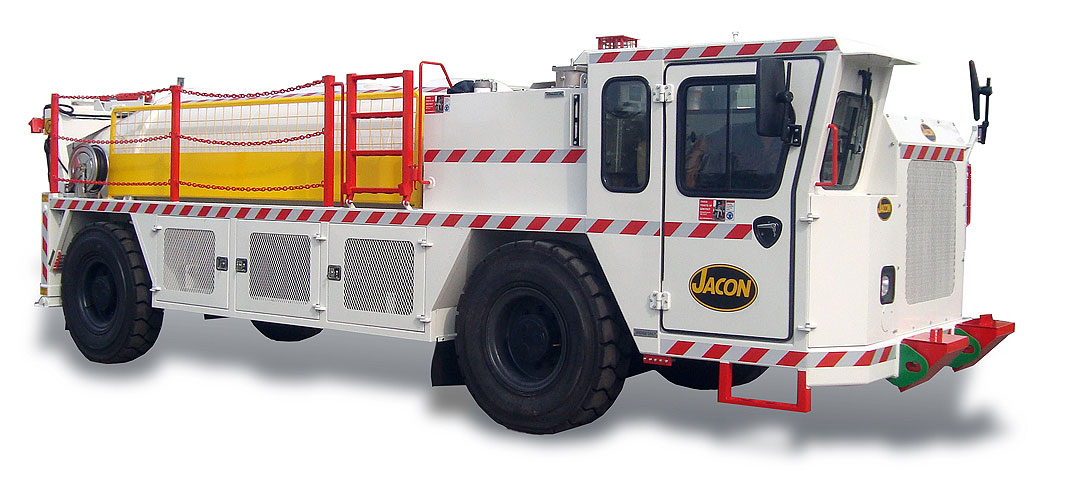

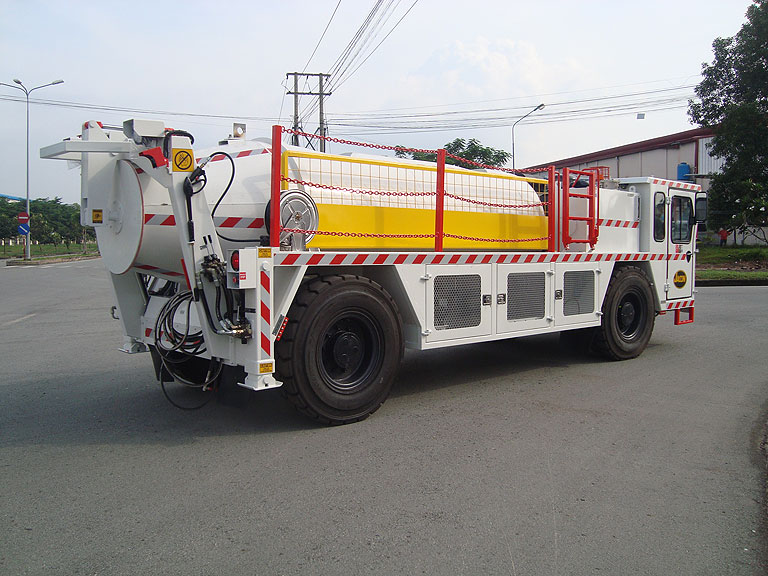

Jacon Transmix 5000 Cigar is the world’s most compact, low-profile mobile concrete mixer, specifically engineered for underground mining conditions

Moore-Quip is capable to of supplying all spare parts and after sales service for this popular Jacon model. Our spares not only meet the Original parts but in most cases exceed the OEM quality. Only Genuine vendor parts used.

Compact and manoeuvrable, the Jacon Transmix is able to carry all the materials needed to support shotcreting operation’s performed by its stable-mates, the Jacon Maxijet

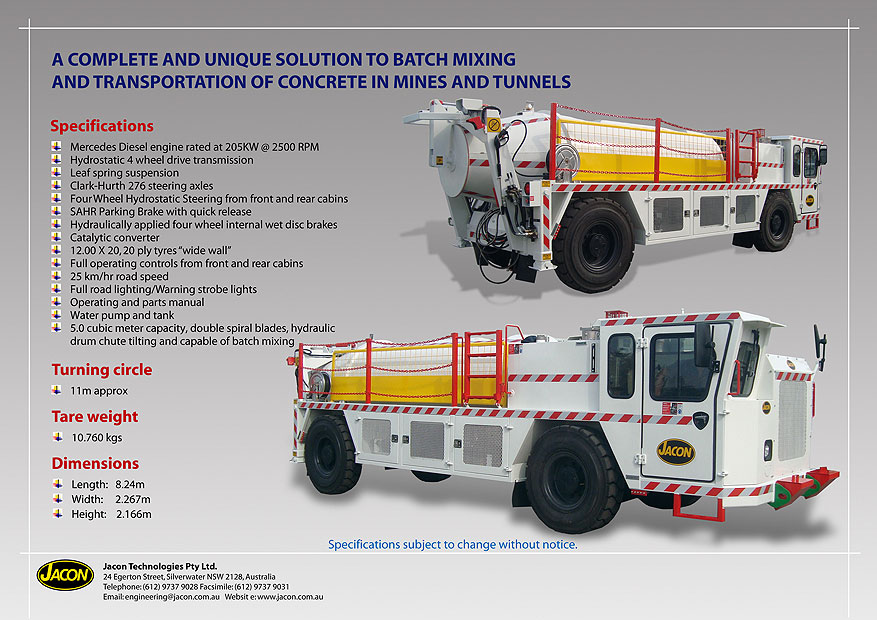

  • Mercedes diesel rated at 205kw @ 2300 RPM
  • Hydrostatic 4 wheel drive transmission
  • Leaf spring suspension
  • Clark-Hurth 276 steering axles
  • Four Wheel Hydrostatic Steering from front and rear cabins
  • SAHR Parking Brake with quick release
  • Hydraulically applied four wheel internal wet disc brakes
  • Catalytic converter
  • 12.00 R20, 20 ply tyres “wide wall”
  • Fully operating controls from front and rear cabins
  • 25 km/h max road speed
  • Full road lightings/warning stroke lights
  • Operating and parts manual
  • Water pump and tank
  • 5.0 cubic metre capacity, double spiral blades, hydraulic-drum tilting and capable of batch mixing

Download PDF
