S42 Coal Skid Mounted Concrete/Shotcrete Pump

IMGP6611

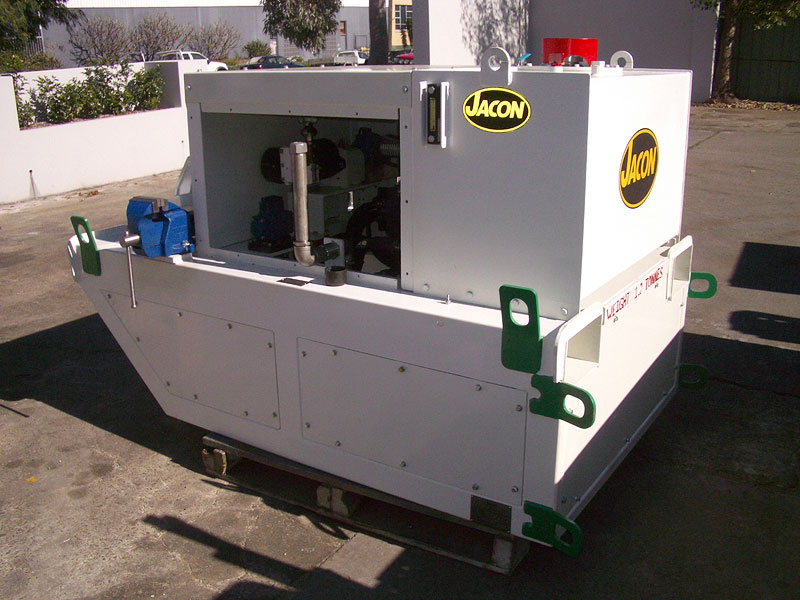

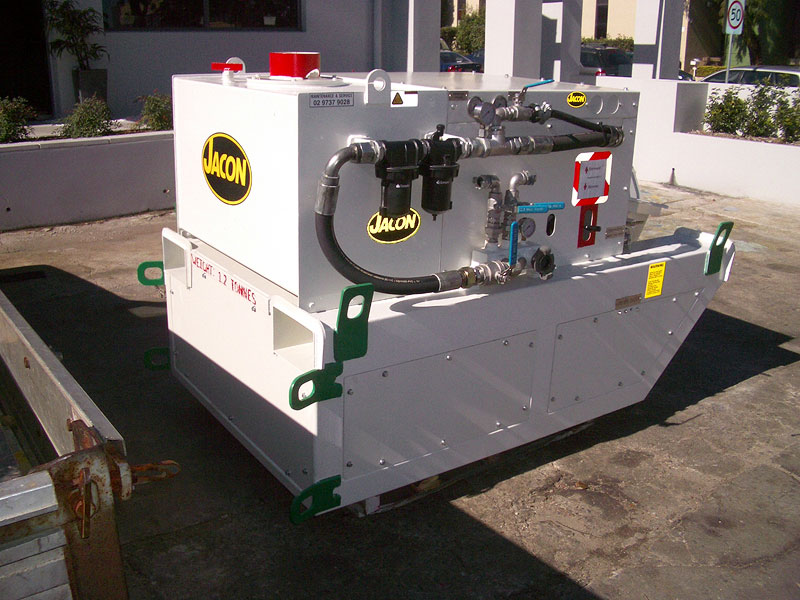

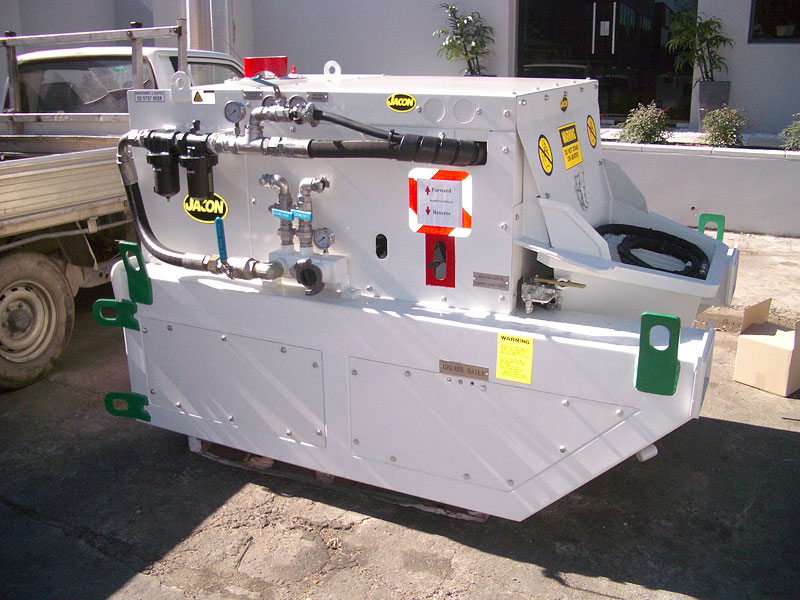

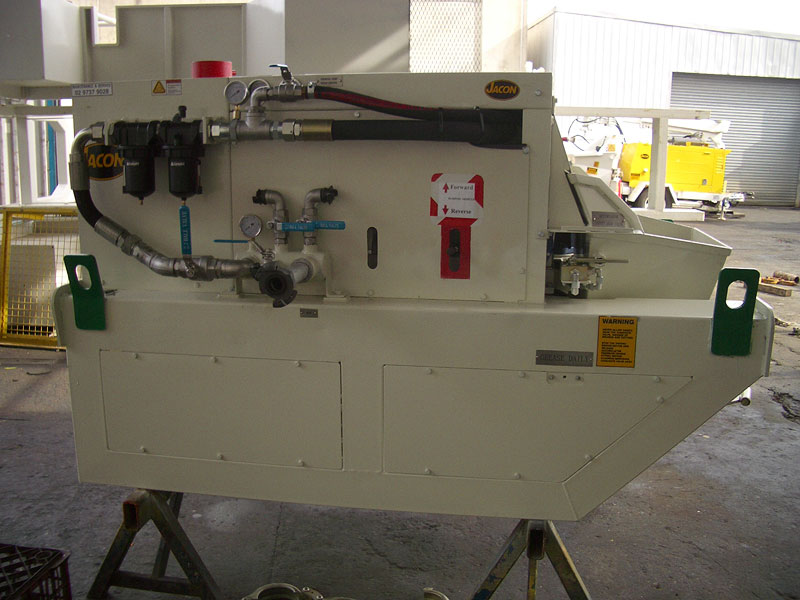

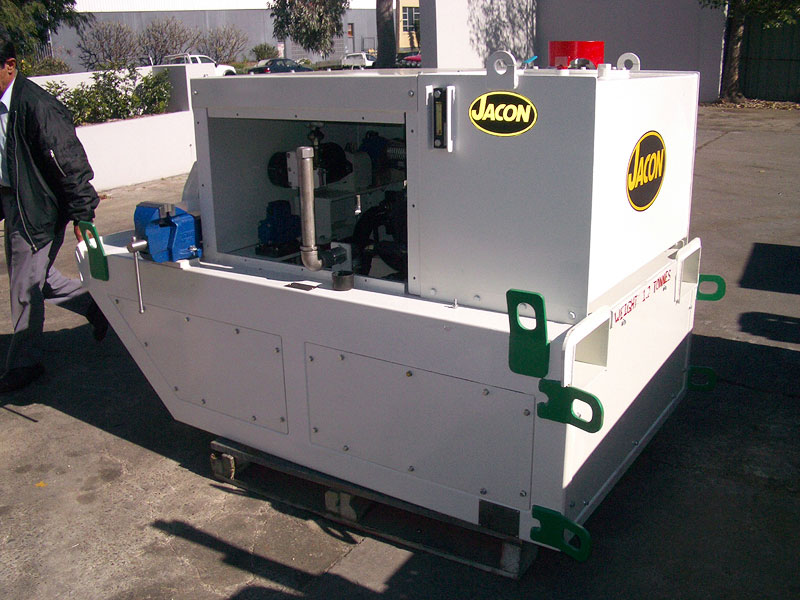

Jacon S42 Coal Skid Mounted Concrete/Shotcrete Pump

The S42 Coal Skid Mounted Concrete/Shotcrete Pump was especially designed for Coal use in explosion risk areas. The Jacon S42 Coal Shotcrete Pump is fully compliment to current legislation for work in coal mines. This machine is currently in use Australia and overseas and is especially designed for hoisting or lowering verticality though a mine shaft or vertical rise.

The Jacon S42 Coal Skid Mounted Concrete/Shotcrete Pump draws on nearly 40 years of production of concrete pumps, line pumps and Shotcreting equipment.   You will be highly impressed with the quality durability, reliability and cost-effectiveness and yet simple to operate.

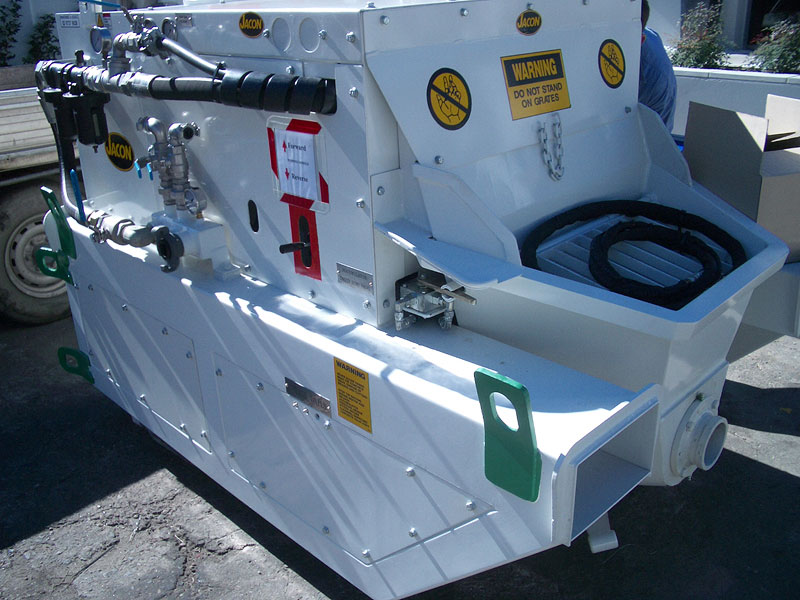

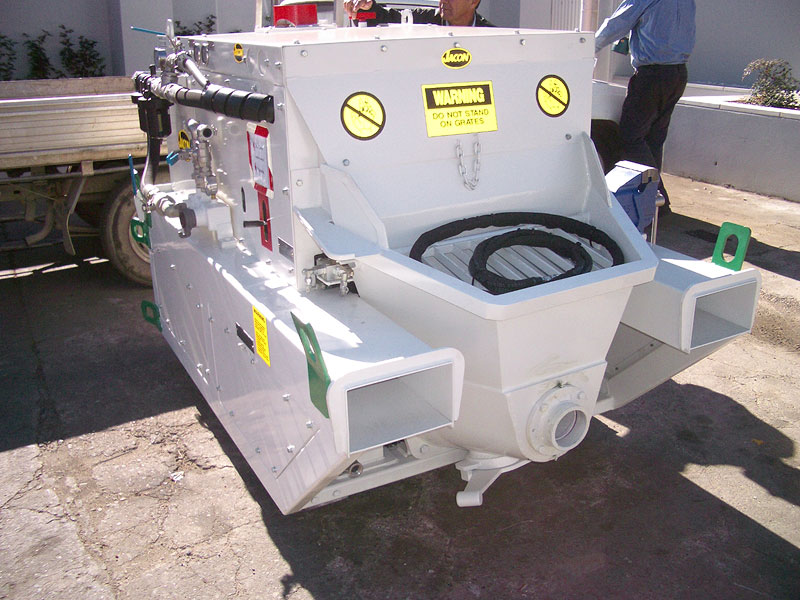

The Jacon “S” valve is designed to handle extremely concrete mixes as well as low slump mixes making the  Jacon Coal Skid Mounted Concrete/Shotcrete Pump a very versatile pump for pumping stiff, low-slump concrete. The receiving hopper has an unrestricted, large, free-filling opening. The Dual Circuit hydraulic system means fast, smooth switching of the heavy duty “S” valve resulting in an almost continuous flow and giving longer life of wear components.

TYPE:                                                  Swing tube model with dual reciprocating pistons.

POWERED BY:                               Air Motor 410 Model

OUTPUT POWER:                         14KW

HYDRAULIC OIL CAPACITY:      120 litres.

CONCRETE CYLINDERS:            101.6 mm hard-chromed with 610mm stroke

HYDRAULIC PRESSURE MAX:  150 BAR Main Cyl – 100 BAR Swing Ram

 LINE PRESSURE MAX:                40 BAR

SUPPLY AIR:                                   240L/SEC @ 6 BAR

RATED OUTPUT:                          6 M3/HR

ACTUAL OUTPUT:                        5 M3/HR

AGGREGATE SIZES:                    Up to 10mm that falls within the accepted grading curve for pump mix.

 NOTE:                                               Performance may vary due to material mix or line set up.

 FEATURES:                                     Automatic make up system.

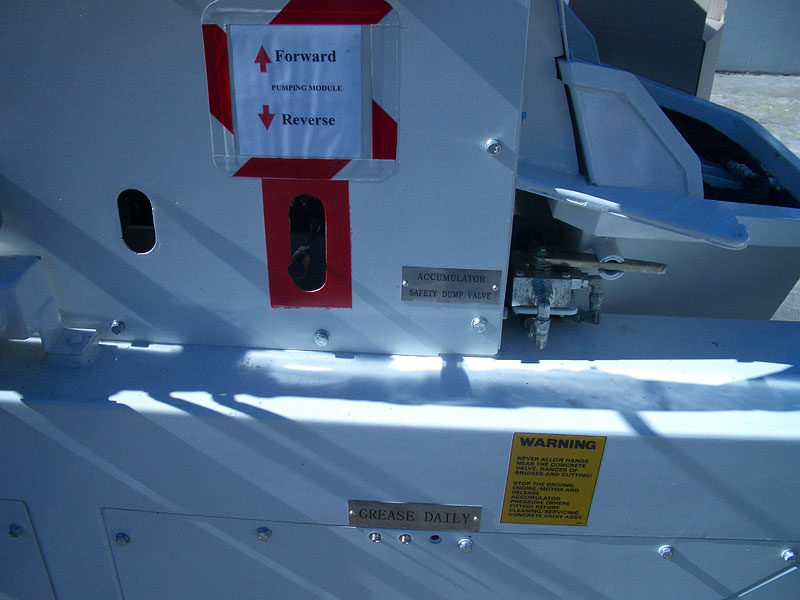

Safety dump valve.

HYDRAULIC SYSTEM:                  Pressure filtration.

                                                                 Dual hydraulic pilot system for positive swinger tube displacement. Fully  automatic stroke.

TARE WEIGHT:                               1200 Kg
